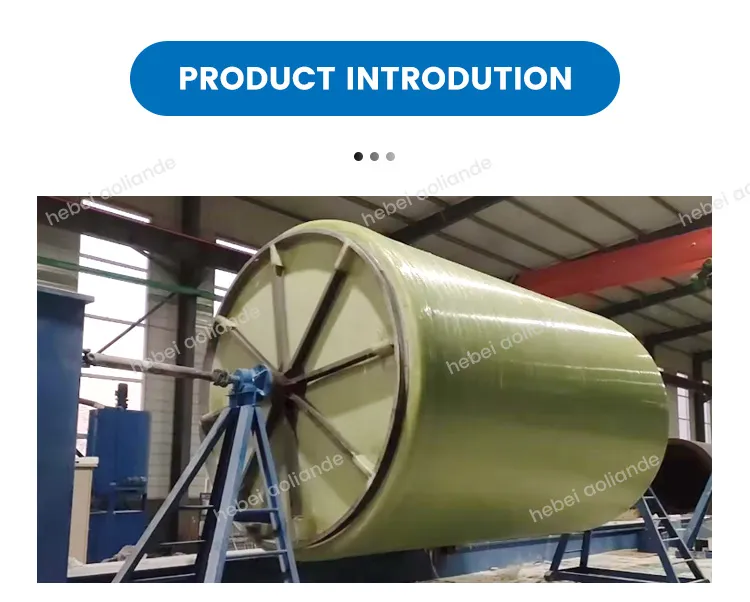

Frp Tank Machine

The key elements such as the transducer, servo system and photoelectrical encoder are from Siemens, Germany; The industrial control computer is made by Yanhua Corporation, Taiwan, showing the Chinese ideograph chrominance, operating easily;

After the parameters inputted into the computer, it can be finished the relative design of winding linearity automatically. The combined movements of the main axle and the carriage controlled by the computer, conforms the winding rules, the technical parameters and its inner quality have reached advanced level in China.

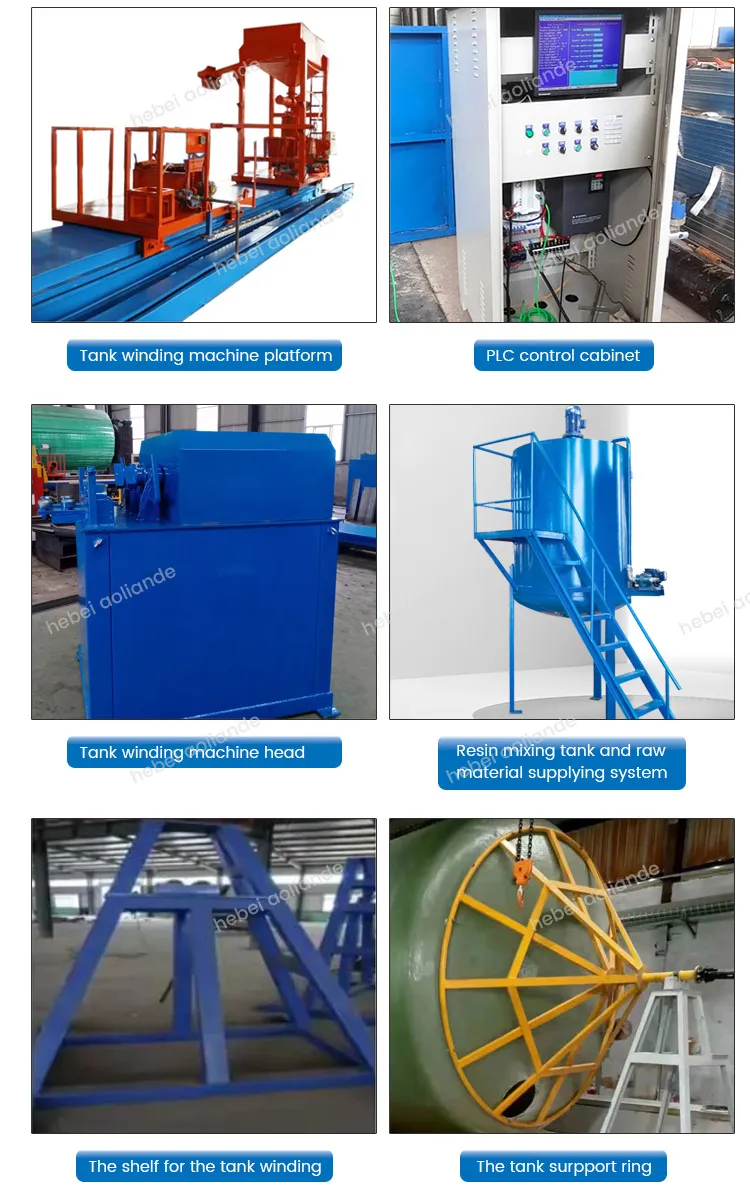

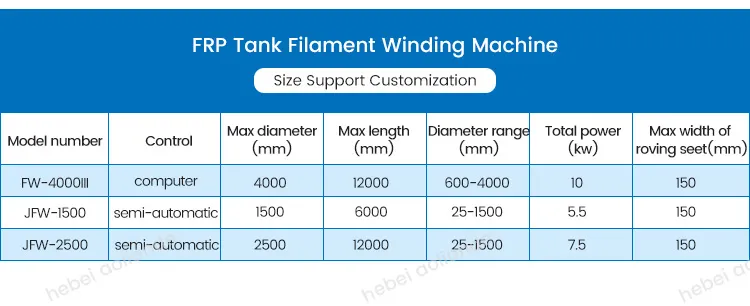

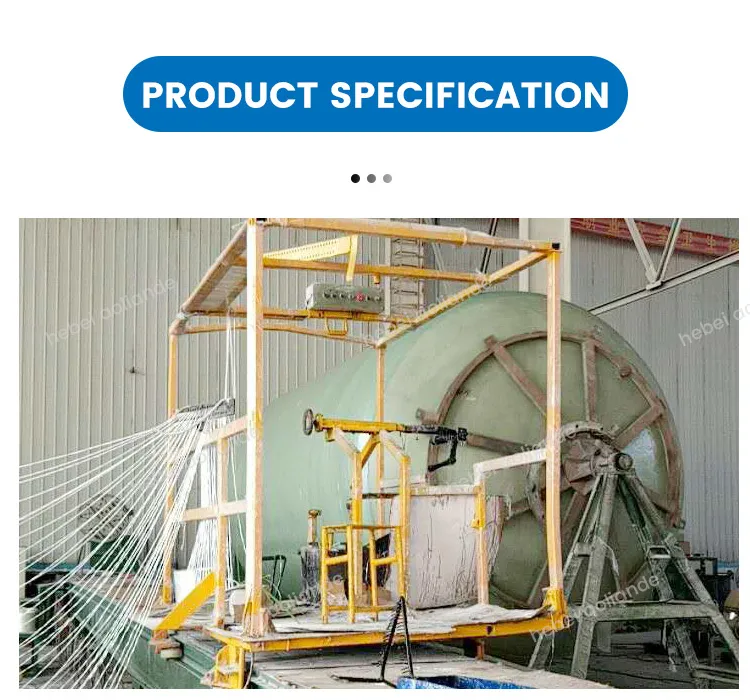

FW-4000 computer control filament winding machine

1. The range of diameter can be wound: DN600~ DN4000mm

2. The maxi length: 12000mm

3. The winding angle: 45°<α<90°

4. The total power: 10kw

5. The tolerance of positioning: <1mm

6. The maxi width of roving sheet: 150mm

7. The productivity: 500kg/h

Large-scale Site Winding Machine

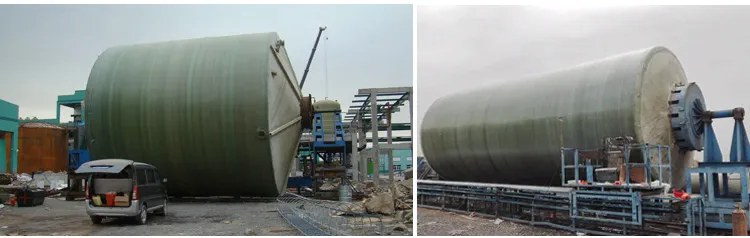

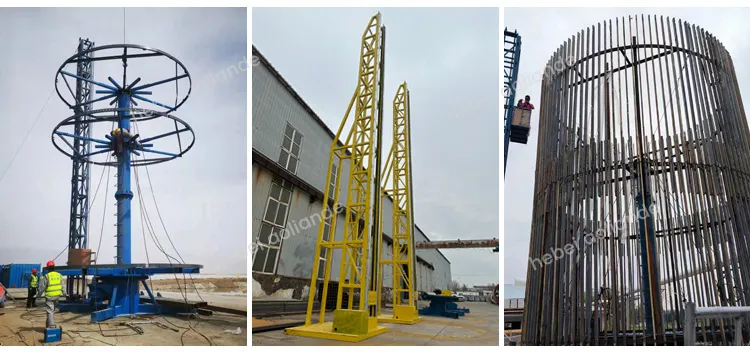

Be restricted by the transportability, the tank which its diameter is more than DN4000mm has been become the difficult point between the ordering party and the contracting party. To meet the requirements of the order party, our company developed this set of large scale site winding, this set is combined structure, can be assembling or dismountable, the set can be transported to the client site .The set is to be assembled beside the foundation of the large tank according to the requirements of the client, then the large tank can be finished.

I.FW-15000 Computer Control Vertical Site Winding Machine

The major properties of the equipment are below.

1.The maxi diameter can be wound: 15000mm

2.The maxi length can be wound: 12000mm

3.The range of diameter: DN4000~DN15000mm

4.The maxi torque: 68350N·m

5.The total power: 18.6kw

6. The maxi width of roving sheet: 1680mm

7.The productivity: 550kg/h

II. FW-25000 Computer Control Vertical Site Winding Machine

1. General

VFW-25000 computer control vertical site winding machine is the most advanced winding machine (hereinafter called Winding Machine) with super large diameter developed by our company, absorbing the foreign advanced technique. It is controlled by computer, specially used for site winding of large caliber FRP tanks. This machine can produce FRP tanks with the diameter from 4m to 25m with the suitable mandrel. The control center of this machine is industrial computer made in Taiwan. Once input the parameters of winding product, the computer can finish the design of linearity of the tank automatically, and then control the compound movement of mandrel rotation and the shift of trolley, put the fiberglass immersed by resin on the inner liner fully in order. This winding machine is the combination of technique and science, such as mandrel rotation, shift of the trolley, and layout of winding roving are all precisely controlled by computer software. The FRP products wound by this machine are widely used in chemical industry, petroleum, and brewery and so on.

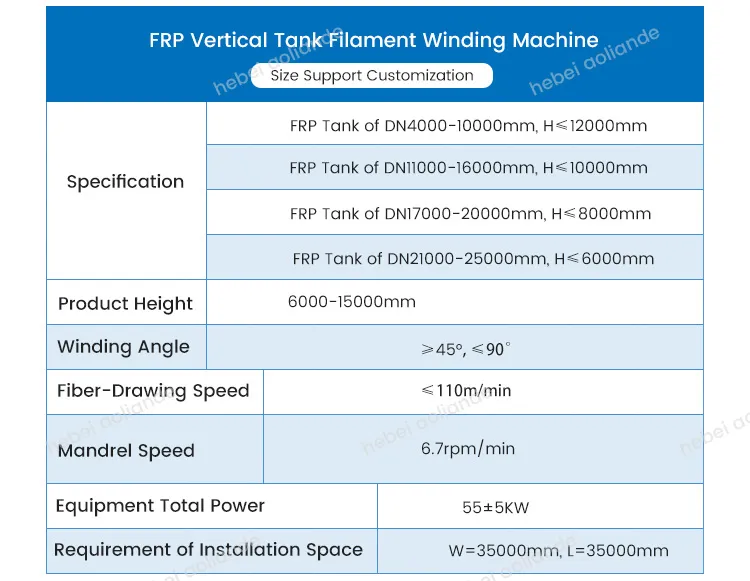

2. Parameters of the Winding Machine

Winding diameter scope: 4m-25m

Max height for each section: 6m (Note: if it is more than 6m, it can be formed by many sections )

Winding angle: 60°-90°

Max rotating speed of the mandrel: 4.6rpm

Woven roving strands: 70*

Productivity: 500Kg/h*

*Note:The productivity and the quantity of strand is based upon the quality of roving.

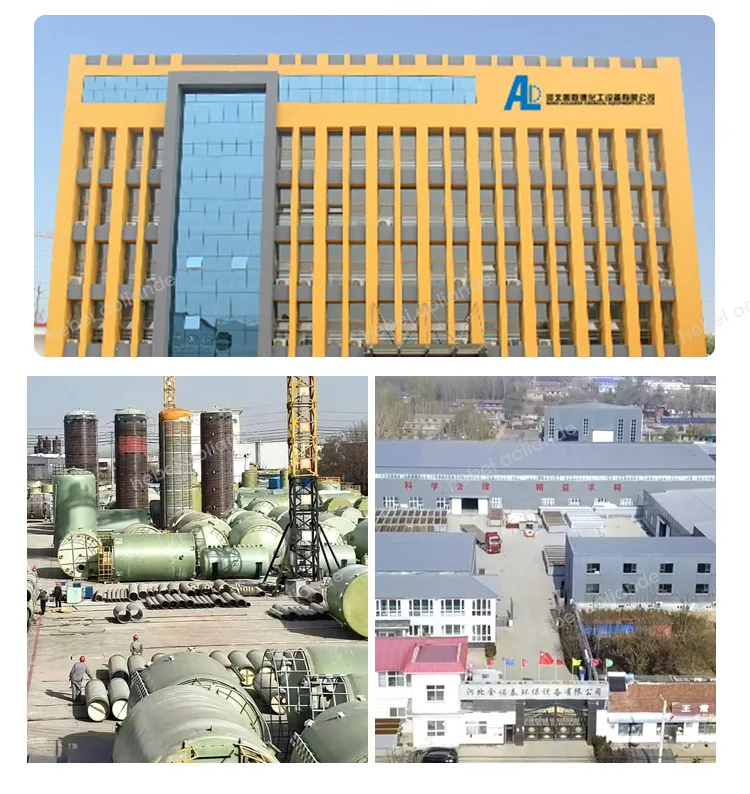

Hebei Aoliande chemical Equipment co., Ltd, is a professional company selling FRP pipes, FRP storage tanks, FRP molding products and FRP production machinery, the company through continuous development and introduction of professional and technology, relying on advanced technology, exquisite technology, reliable quality and perfect service, passed ISO9001, ISO14001 management system certification, now we have more than 50 employees, the annual sales of FRP series products reached 5,000,000 us dollars. Products have been sold all over the world, the United states, Brazil, Japan, Germany.India, Malaysia, Egypt, etc., won the support and trust of new and old customers.
