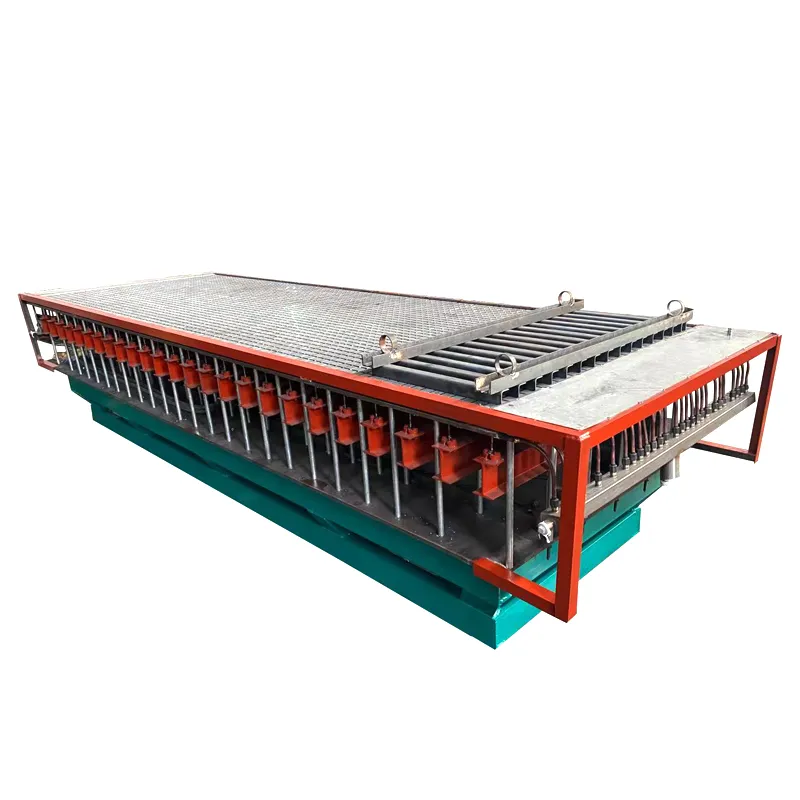

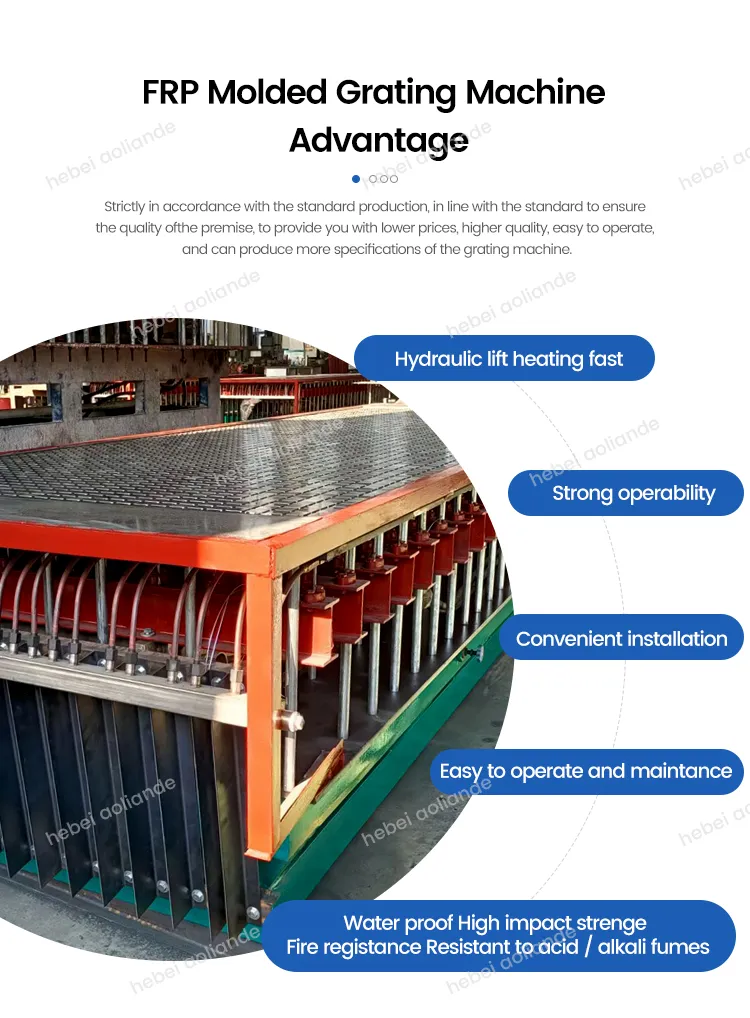

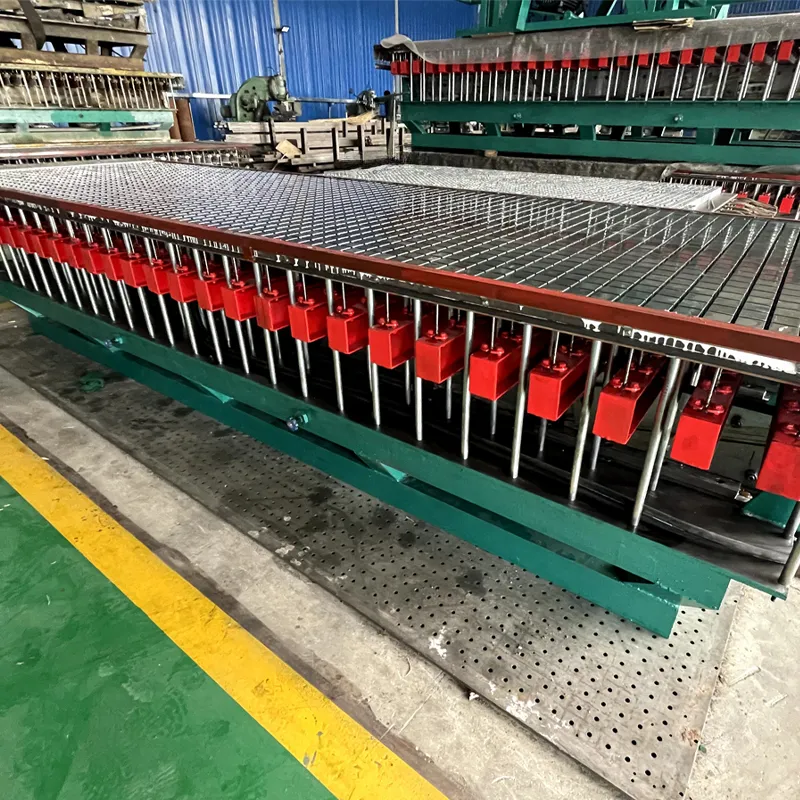

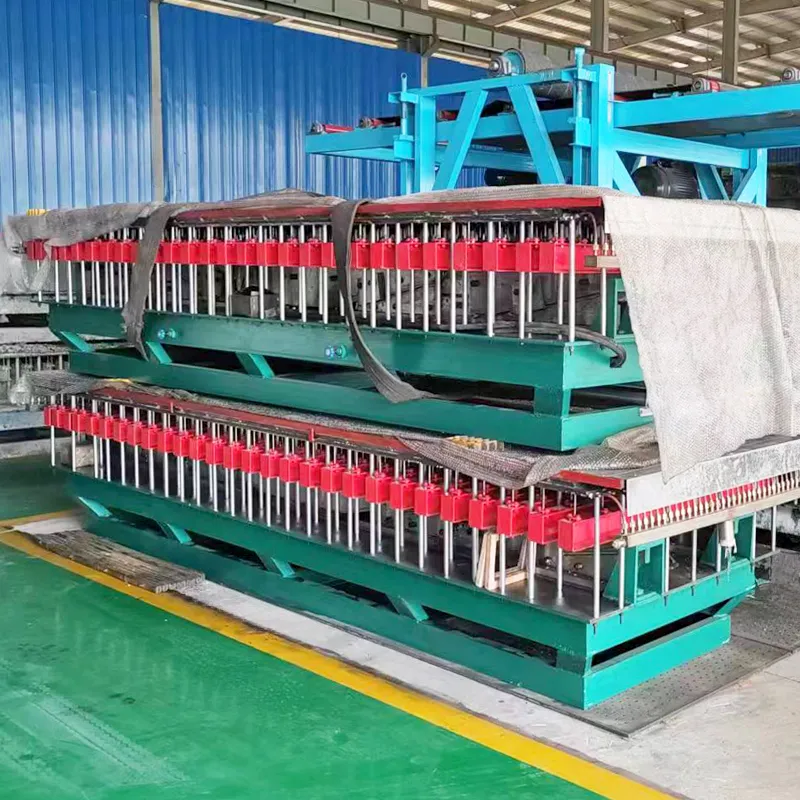

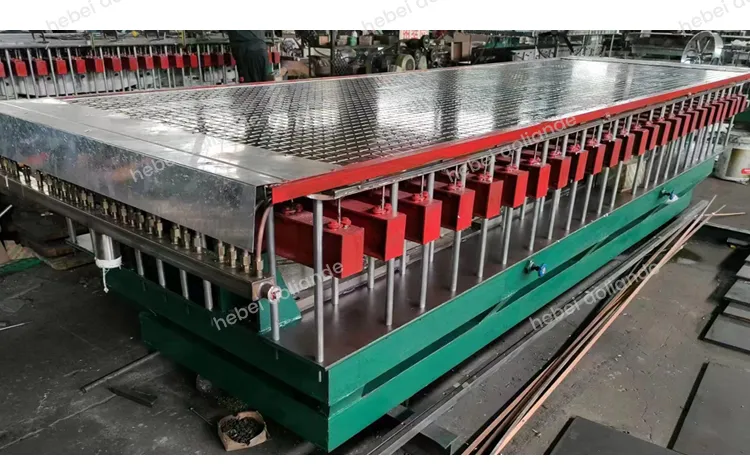

Frp Grating Machine

FRP grating mold is a non-standard model of FRP molded grating machine, as the recent car gradually into the homes of ordinary people, around the car and car beauty shop in the ascendant. FRP grating in the field of caravans to promote, making the glass car grille market really formed, expanding the FRP grating has a new field. We have designed this specification in accordance with this form of equipment, because you can also in the direction of the length of the production of 3660 and 4000 grid plate, so the mold once listed, immediately received the majority of glass steel grille manufacturers of all ages.

Remarks: the size can be customized according to customer requirements.

The following technical information on the equipment described below:

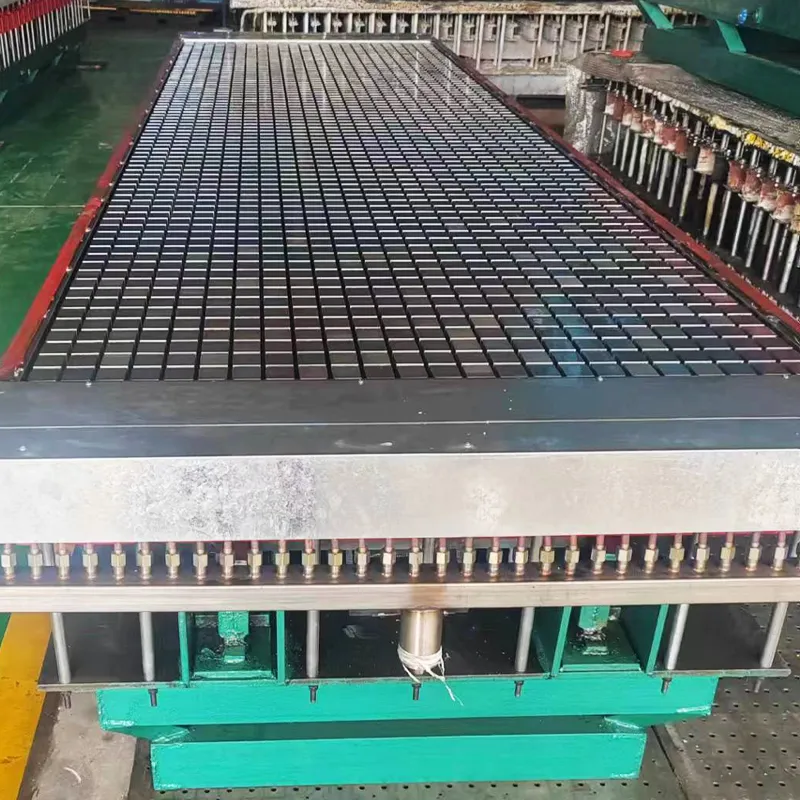

First, the mold forming surface size: 1220 * 4920 * 40mm, at the same times the production of arbitrary specifications of the card grille. For example: 1220 * 3660mm or 1220 * 4000mm board can be produced.

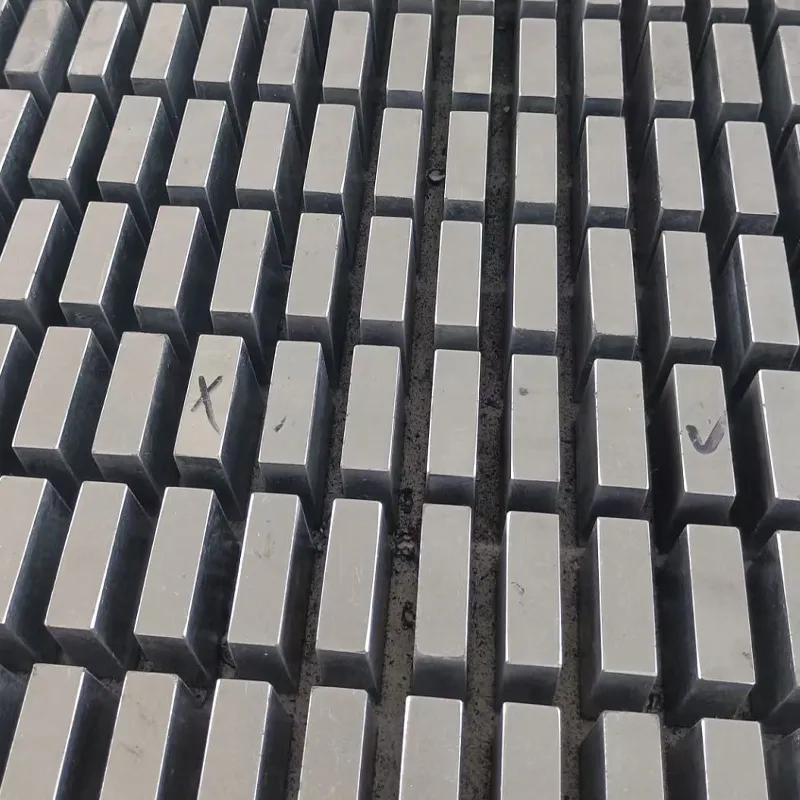

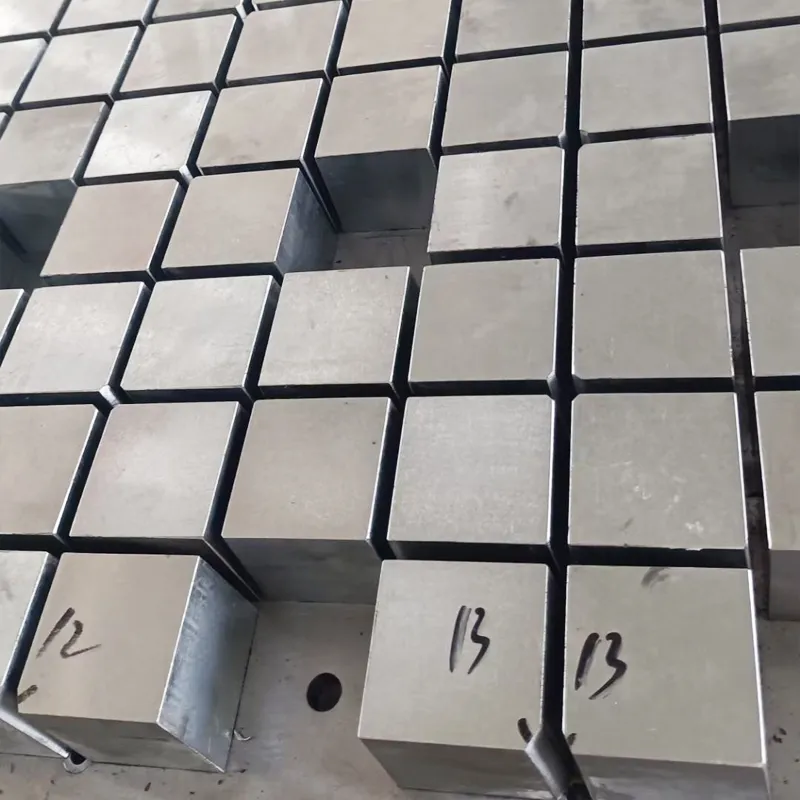

Second, the module specifications: the upper end: 31.1 * 31.1mm, the lower end: 33.1 * 33.1mm, the module height of 40 mm. The size of the entire module deviation is not greater than 0.08 mm. Of course, we can also adjust the size of the module according to customer requirements;

Third, the module material and technology: the module selection of high-quality #45 steel, after sawing cutting, grinding machine flat head, milling machine open oblique, grinding machine leveling, drilling, sanding chamfering, cloth wheel polishing, plating hard chrome and other 8 processes Into, which is the most attention to the module plating, to strictly accept the seventy-nine forty-nine minutes of plating, in the module surface to form 0.05-0.07 mm coating. The whole process gives us an exclusive tour of another version of a steel art tour.

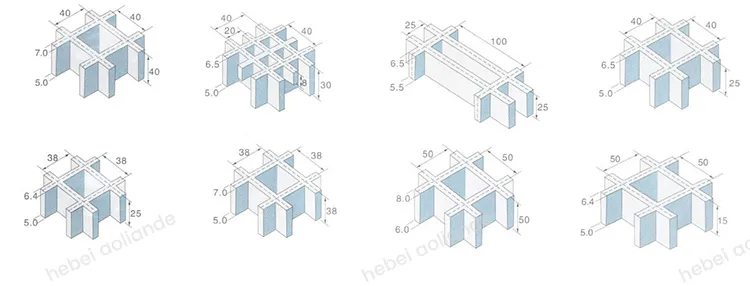

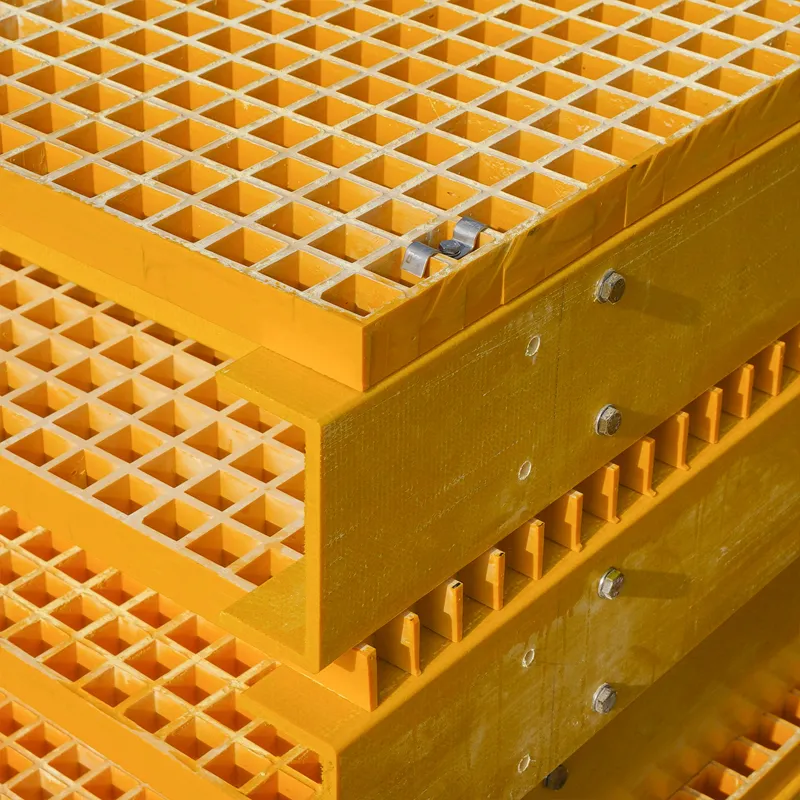

Fourth, the product size: Center distance: 38.1 * 38.1mm, height: 38 mm, product ribs thickness, the next 5mm/7mm. Products in the square meter in the 19.5 kg, material consumption, close porcelain real.

Fifth, the color: According to customer requirements for FRP grating equipment, the general factory color for the general-purpose motor gray.

Six, roof thickness: 14mm, material S45C steel, roof surface milling machine trim, large-scale sanding machine high-speed polishing.

Seven, bottom plate thickness: 14mm, material Q235A, large gantry milling machine planning.

Eight, the trip part: the stroke of the equipment is the central part of the movement of the mold, we use 25 mm thick S45C steel plate, after milling machine precision machining to ensure that the size of strict fit, combined with eight 45 mm square steel as the support, to ensure that the whole Stroke advance and retreat, smooth operation. Cylinder size diameter 110mm, length 350mm, cylinder pillow selection of wide Q235A forged steel, super pressure.

Nine, mold overall appearance: wide 1300 * long 5730 * high 850 mm. The height of the mold can be adjusted according to the grille production process selected by the customer. For example, choose a single pull the yarn customers; our mold height is generally not more than 750 mm.

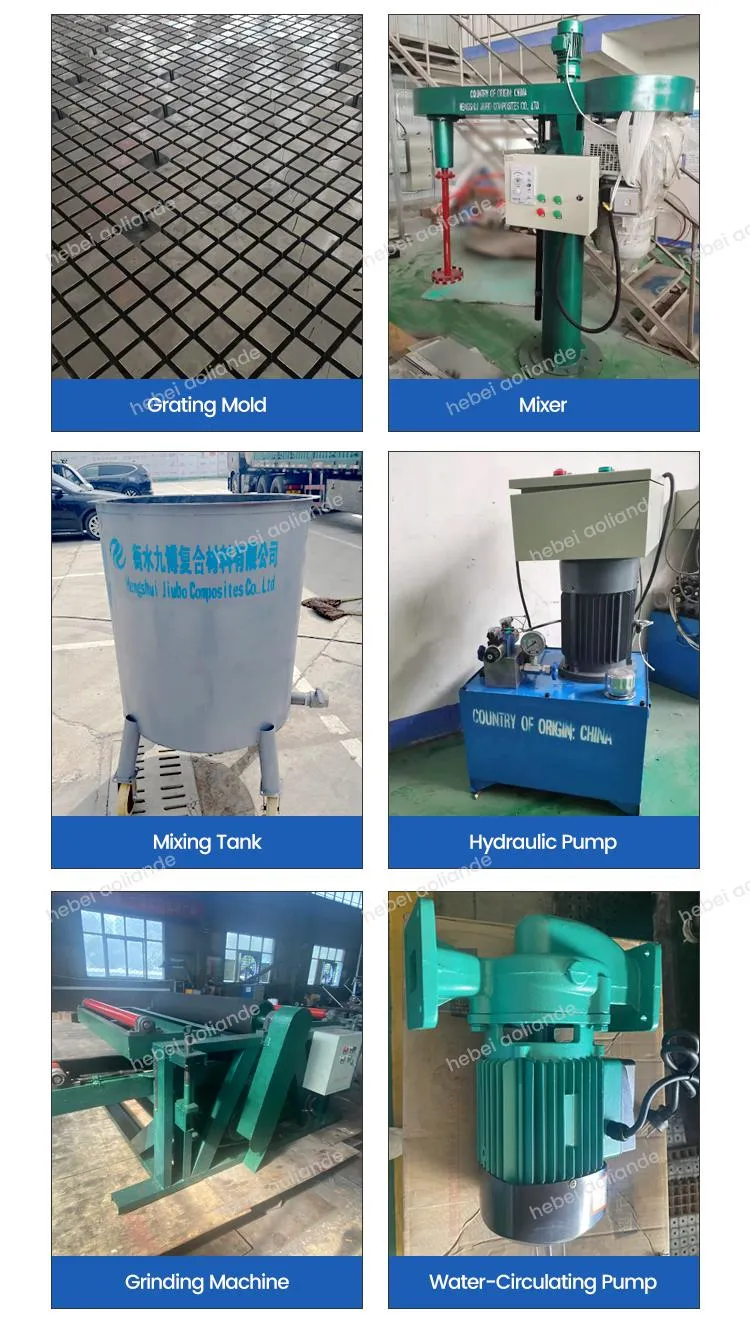

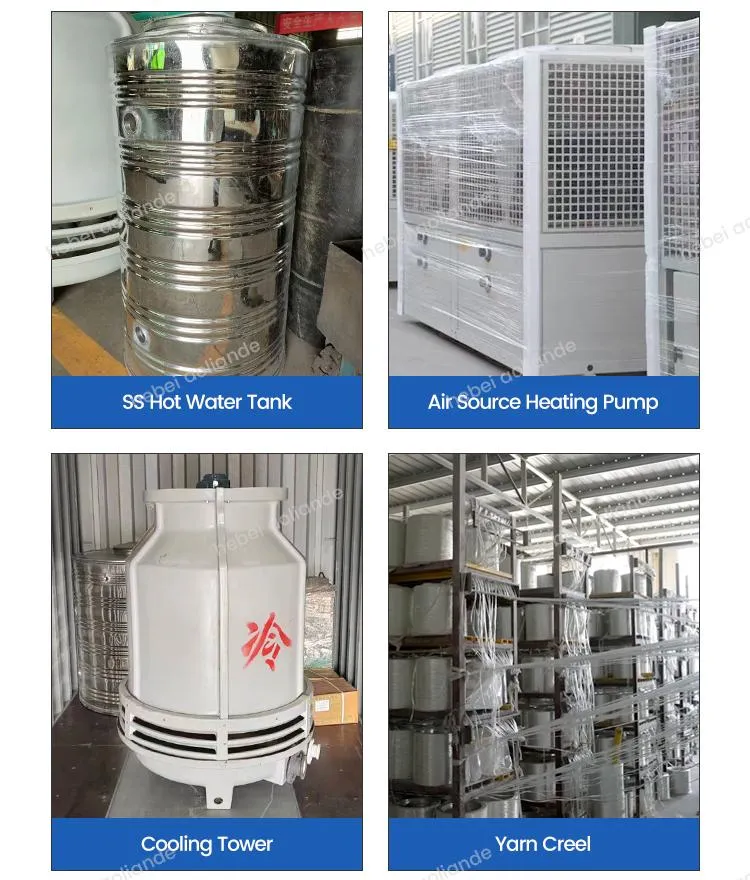

The Main components

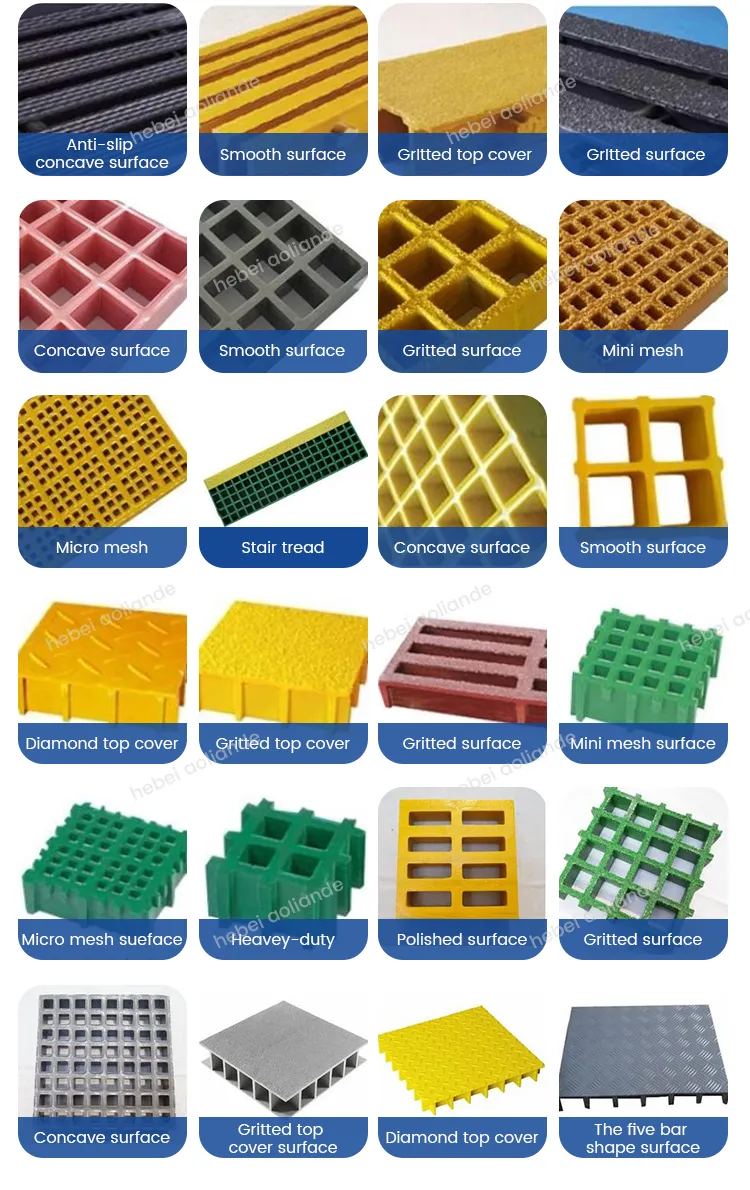

FRP Grating machine is mainly composed of ten parts, simple operation, easy maintenance,according to your needs to produce different specifications of different styles of different colors of grating products.

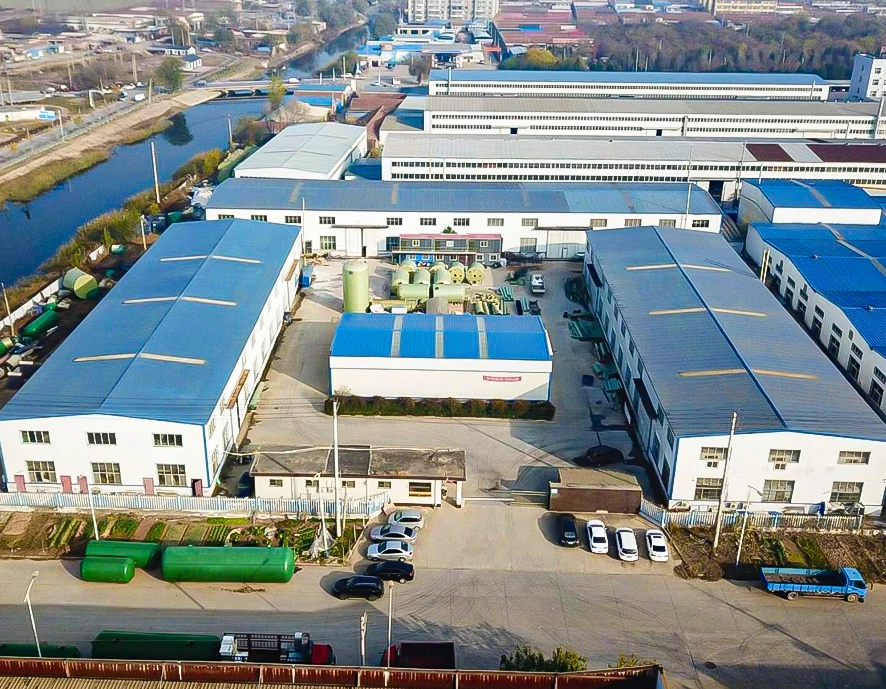

Hebei Aoliande chemical Equipment co., Ltd, is a professional company selling FRP pipes, FRP storage tanks, FRP molding products and FRP production machinery, the company through continuous development and introduction of professional and technology, relying on advanced technology, exquisite technology, reliable quality and perfect service, passed ISO9001, ISO14001 management system certification, now we have more than 50 employees, the annual sales of FRP series products reached 5,000,000 us dollars. Products have been sold all over the world, the United states, Brazil, Japan, Germany.India, Malaysia, Egypt, etc., won the support and trust of new and old customers.
